Description

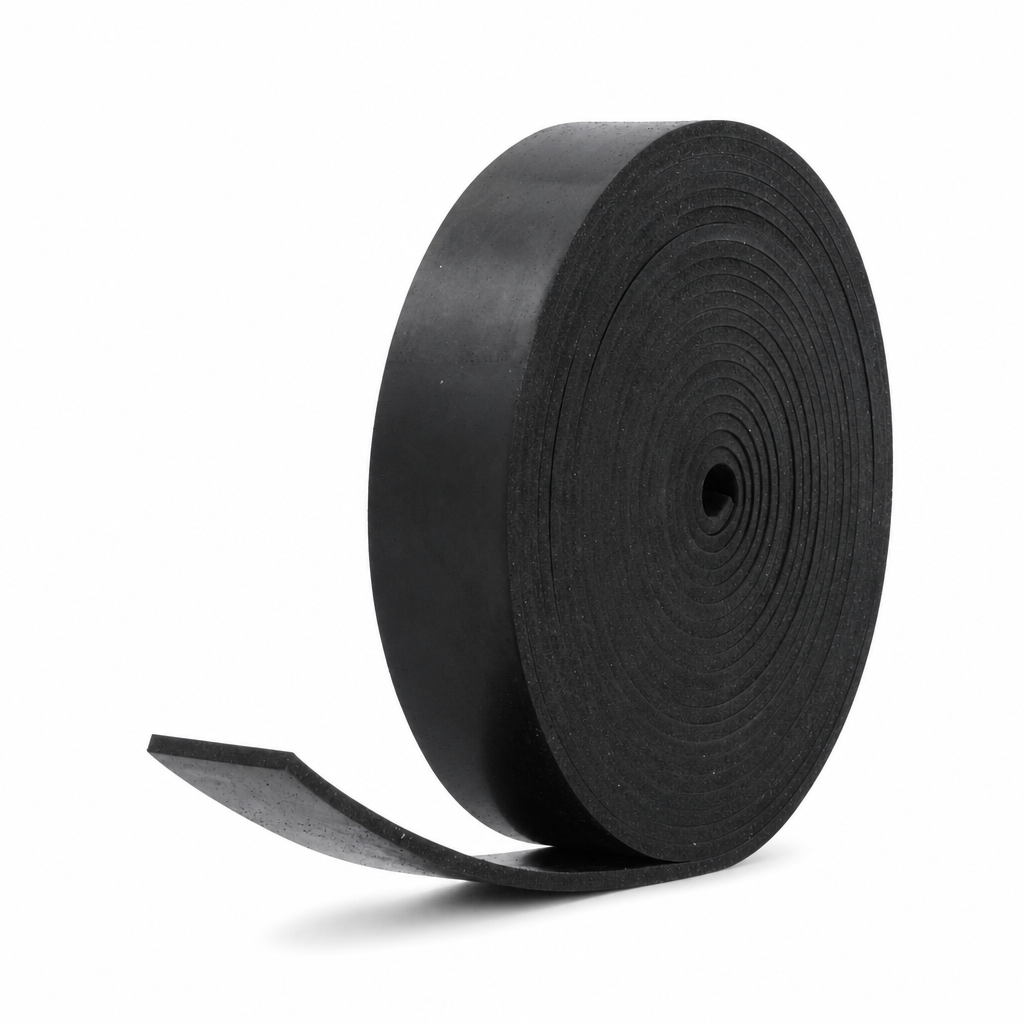

Solid SBR Rubber Strip — 3mm Thick
A commercial-grade solid rubber strip manufactured from a natural rubber and styrene-butadiene rubber (NR/SBR) blend. Supplied in 5-metre lengths across eleven widths from 10mm to 100mm, this strip is engineered for sealing, cushioning, vibration damping, and impact protection across industrial, engineering, and general-purpose applications. Tough, flexible, and easy to cut to size — it bonds readily to most hard surfaces using a standard contact adhesive.
Available Dimensions
Select your required width from the dropdown above. All strips are 3mm thick and supplied in 5-metre lengths.
Key Properties
- Colour: Black
- Material: NR/SBR — Natural Rubber / Styrene-Butadiene Rubber blend
- Thickness: 3mm
- Length: 5 metres per strip
- Hardness: 65° Shore A (± 5°)
- Operating Temperature: −30°C to +70°C
- Density / Specific Gravity: 1.50 g/cm³
- Tensile Strength: 3.0 MPa minimum (ASTM D412)
- Elongation at Break: 250% minimum (ASTM D412)
- Compression Set: 30% maximum — ASTM D395 Method B, 70°C / 22 hours
- Grade: Commercial / General Purpose
- Waterproof: Yes — resistant to moisture and general liquids
- Abrasion Resistance: Moderate
- General Purpose Performance: Excellent
- Food Use: Not recommended
- Ozone Resistance: Not recommended
- Flame Retardancy: Not recommended
- Electrical Resistance: Not recommended
- UV / Ozone / Solvent / Petrol Exposure: Not recommended
- Adhesion: Bonds to most hard surfaces using a general-purpose contact adhesive
- Fabrication: Can be trimmed or cut to size with scissors or a craft knife
Full Technical Specification
| Property | Unit | Standard | Value |
|---|---|---|---|
| Colour | — | — | Black |
| Base Polymer | — | — | NR/SBR |
| Indentation Hardness | Shore A | ASTM D2240 | 65 (−4 / +5) |
| Tensile Strength | MPa | ASTM D412 | 3.0 minimum |
| Elongation at Break | % | ASTM D412 | 250 minimum |
| Specific Gravity / Density | g/cm³ | — | 1.50 |
| Working Temperature | °C | — | −30° to +70° |
| Compression Set | % Max | ASTM D395 Method B — 70°C / 22h | 30 |
| Abrasion Resistance | — | — | Moderate |
| General Purpose Performance | — | — | Excellent |
| Food Use | — | — | Not recommended |
| Ozone Resistance | — | — | Not recommended |
| Flame Retardancy | — | — | Not recommended |
| Electrical Resistance | — | — | Not recommended |
Dimensional Tolerances
| Dimension | Range | Tolerance |
|---|---|---|
| Width | 10mm – 25mm | ± 1.0 mm |
| Width | 25.1mm – 100mm | ± 1.5 mm |
| Width | 100.1mm – 250mm | ± 2.0 mm |
| Thickness | 3mm | ± 0.3 mm |
* All tolerance values are average figures. We recommend verifying material suitability for your specific application before use.
Typical Applications
Frequently Asked Questions
What is SBR rubber and what makes it suitable for general-purpose use?
SBR (Styrene-Butadiene Rubber) is a synthetic rubber blended here with natural rubber (NR) to produce a material with good abrasion resistance, flexibility, and resilience. It performs reliably across a wide range of sealing, cushioning, and protective applications in both industrial and trade environments.
What widths and lengths are available?
This strip is available in eleven widths: 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 75mm, and 100mm. All strips are 3mm thick and supplied in 5-metre lengths. Select your width from the dropdown above.
Can the strip be used outdoors?
This material is not recommended for prolonged exposure to UV light, ozone, petrol, or solvents. For outdoor applications with significant UV exposure, a more UV-stable rubber compound would be more appropriate.
How do I fix the strip in place?
The strip bonds securely to most hard surfaces using a general-purpose contact adhesive. Apply adhesive to both surfaces, allow to become touch-dry, then press firmly together for a strong, lasting bond.
Can I cut the strip to a shorter length or narrower width?
Yes. The strip can be trimmed easily using scissors or a craft knife. No specialist tools are required, making it straightforward to cut to your exact required dimensions on site.
Is there a tolerance on the stated dimensions?
Yes. Width tolerance is ±1.0mm for strips up to 25mm wide, and ±1.5mm for strips from 25.1mm to 100mm wide. Thickness tolerance is ±0.3mm. These are standard manufacturing tolerances for this type of rubber strip.
